Right-Hand Accordion MIDI Sampler — SoundPro X5
The right-hand accordion MIDI sampler from SoundPro X5 combines programmable treble-key sensing, bellows expression and an integrated SD-card sound engine. It is designed for the solo side of an acoustic accordion and provides direct stereo audio for stage, rehearsal and studio use.
SoundPro X5 generates audio from the sound bank stored on the SD card. Stereo audio is available through the 3.5 mm output for an amplifier, mixer or active speaker.
Right-hand MIDI control
- Up to 46 configurable right-hand sensor inputs
- Individual assignment of every input to MIDI notes from 0 to 127
- Editable MIDI channels, preset names and performance settings
- 10 banks with 10 performance presets per bank
- Up to 32 configurable register combinations
- 16 configurable hardware User buttons
Professional SD-card sampler
- 48 kHz / 16-bit PCM mono and stereo audio
- Samples streamed directly from the SD card
- Up to 28 simultaneous voices, including up to 26 SD-streamed voices
- Up to 254 sampler presets
- Up to four independent sound layers
- Key, velocity and expression-controlled zones, plus round-robin variations
- Root-note, tuning, gain, sample-start, loop, crossfade and release-sample controls
Sound processing and expression
Each layer has individual volume, expression, pan, transpose and effects. Processing includes a 10-band EQ, compressor/enhancer, stereo reverb and stereo delay.
The bellows-pressure sensor supports center, pull, push, minimum and maximum calibration, with several response profiles and a customizable expression profile.
Sound-bank management
The dedicated SoundPro X5 Bank Manager for Windows supports preset organization, WAV import, multisample mapping, waveform and loop editing, preview and preparation of complete sound banks for the SD card.

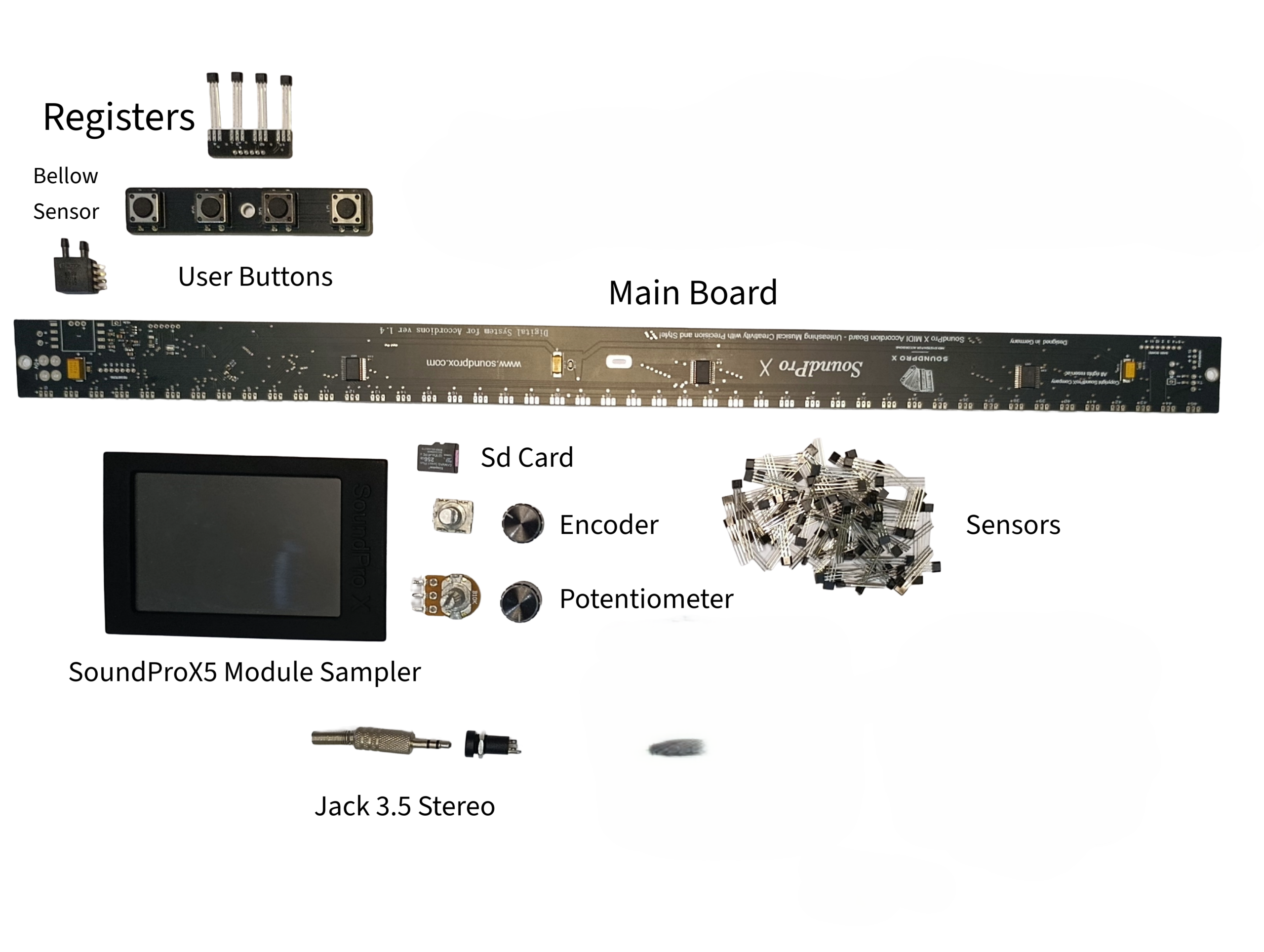

Package shown
- SoundPro X5 sampler and control/display module
- Main right-hand sensor board and key sensors
- SD card for sound-bank storage
- Bellows-pressure sensor and register-sensor assembly
- Four-button User-control board, rotary encoder and potentiometer
- 3.5 mm stereo audio jack
Important: The system supports 16 configurable User-button inputs; the pictured package includes one four-button control board. This package is for the right-hand/solo side, and Bass and Chord boards are not included. Mechanical installation and sensor positioning must be adapted to the accordion.
Who is this right-hand accordion MIDI sampler for?
This right-hand accordion MIDI sampler is intended for players who want electronic sounds on the treble side while preserving the acoustic Bass and Chord sections. It can reproduce layered solo sounds directly from the SD card and can also send MIDI information to compatible external equipment. The four Upper layers make it possible to build registrations with different ranges, balance, transpose and effects.
Installation and performance workflow
The key sensors, bellows-pressure sensor, display and controls must be installed and calibrated for the specific accordion. After installation, the musician selects a preset, adjusts the sound layers and plays through the stereo output connected to headphones, powered speakers, an amplifier or a mixer. The 16 User buttons can be assigned to frequently used performance functions for quick access without leaving the main playing screen.
Related SoundPro solutions
Players who already have a MIDI-equipped instrument can use the separate SoundPro X5 SD card MIDI sampler module. For a complete right-hand, Bass and Chord installation, see the SoundPro X5 accordion MIDI sampler system. MIDI technology information is available from the MIDI Association.
The right-hand accordion MIDI sampler can be prepared with different registrations for solo, ensemble and accompaniment work, allowing the player to change sounds without reconfiguring the installation during a performance.
